2015-2023 GX460 Washer Fluid Tank

Looking to add a high clearance front bumper or larger tires to your GX460? An obvious problem you'll quickly see is the low hanging plastic factory washer fluid tank by the passenger front tire.

This tank is essentially the same as the 2010-2014 GX tank, but I've reduced the size to allow room for the larger headlights that come with the face lift on the front end. Its' capacity now is about 3/4 of a gallon.

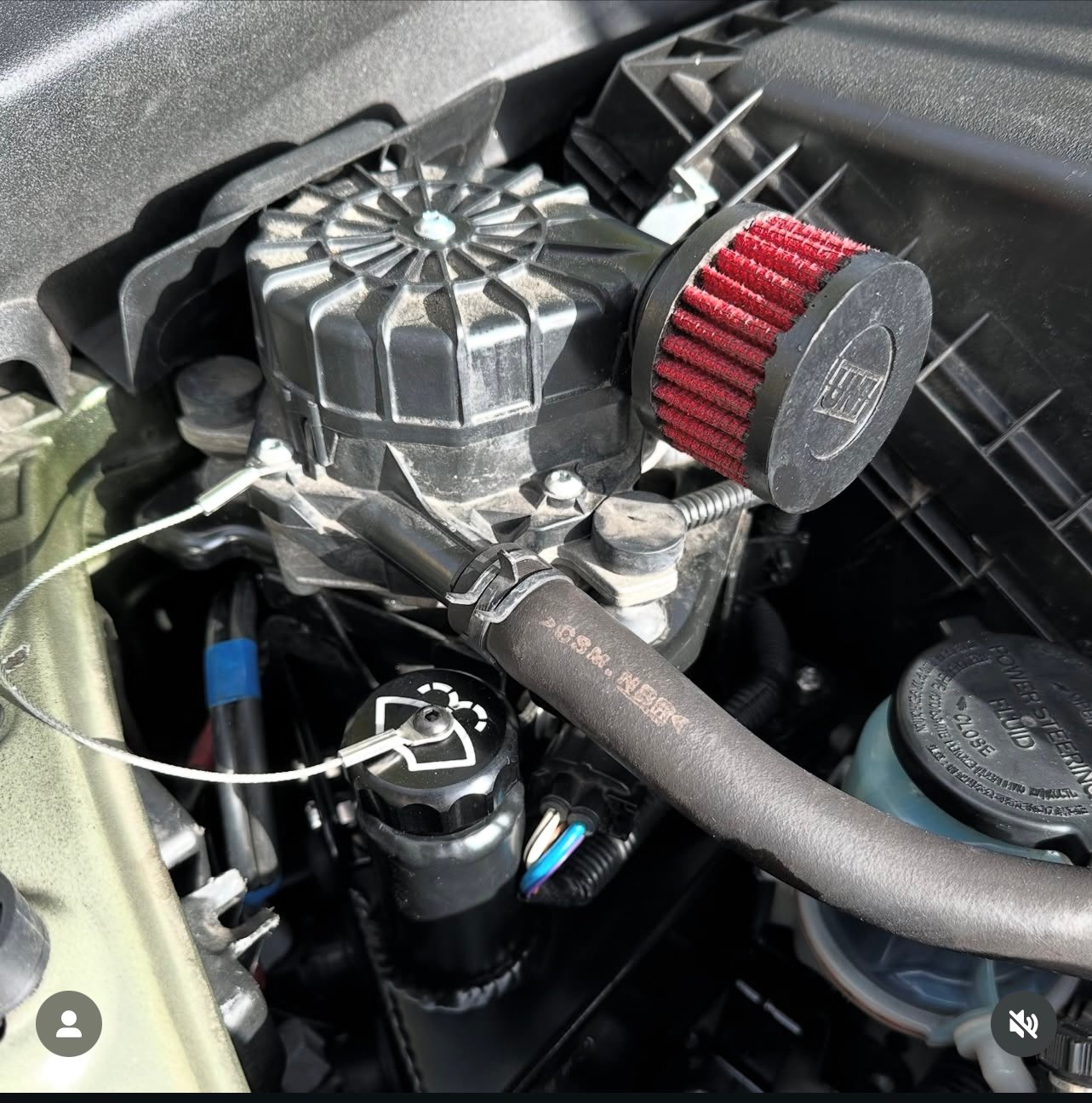

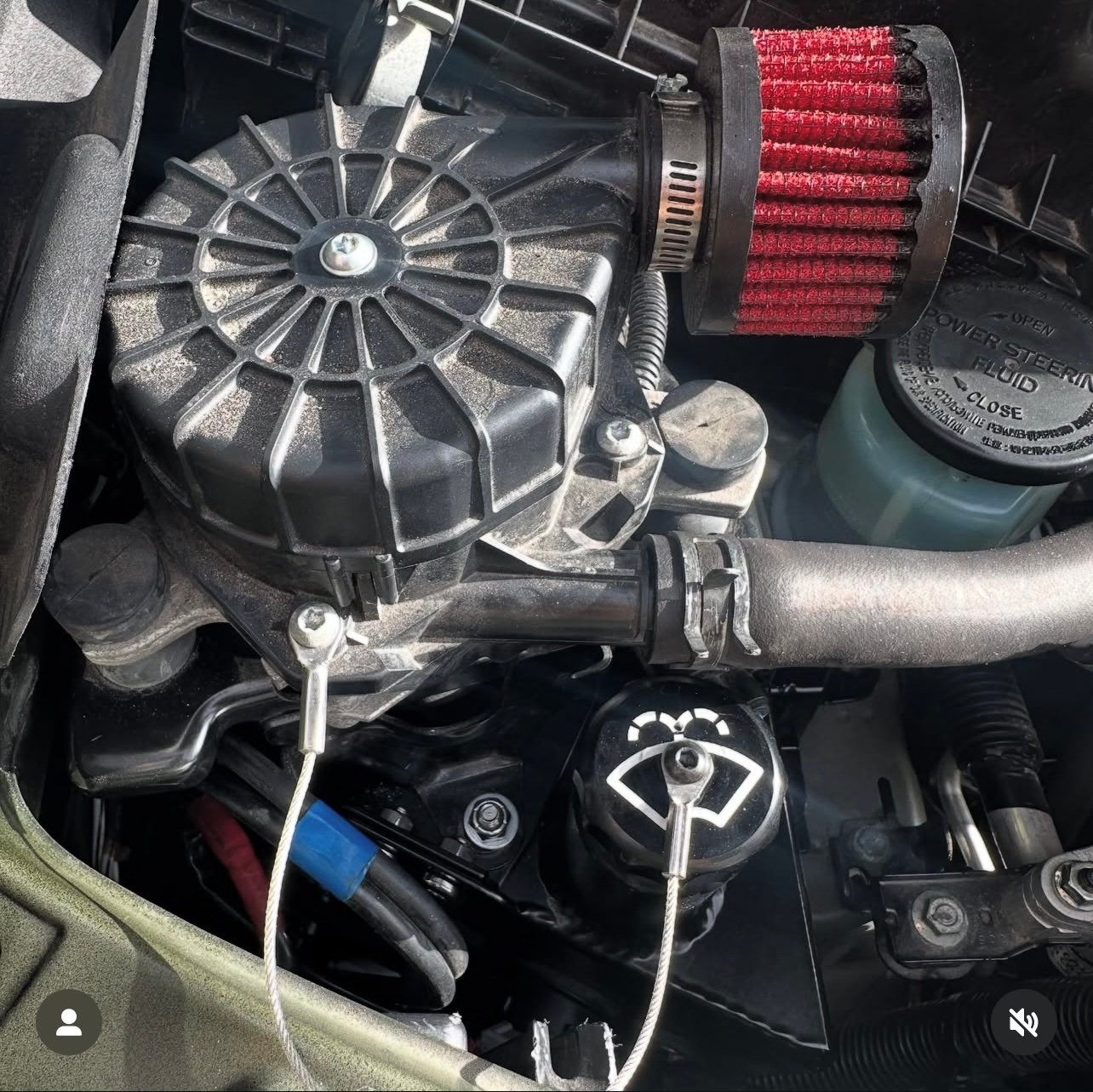

This new aluminum tank bolts right into place using the existing holes for the secondary air injection pump and comes with an aluminum bracket to relocate the air pump to the top of the washer fluid tank. The installation will require trimming a section out of the plastic trim surrounding the filler neck and air injection pump.

The tank is waterjet cut and TIG welded in Grand Junction, Colorado from .100 5052 aluminum. It's finished in a semi-gloss black powder coat and comes with a vented cap with a lanyard and all the necessary hardware to install.

This version of the tank provides the holes for the front pump, rear pump, and the washer fluid level sensor. Some GX460's come with headlight sprayers, if you need that for yours, please select that option from the drop down menu. If you desire to delete that system, order the standard tank and simply disconnect that pump during the installation of the new tank.

**If installing a tank with the headlight sprayers, you will need to extend the two wires for the headlight pump only to reach the new location. I will provide a kit which includes:
-2 lengths of 18 GA wire, 12" long
-4 butt connectors
-16" of braided wire loom
-2 pieces of heat shrink

Current lead time is 3-4 weeks as these are built to order from my site.

Price includes a complete washer fluid tank, necessary hardware, and free shipping to the lower 48 states.
